Concrete Mix Design: Illustrative Example M30 Grade (M20, M25, M40)

Concrete mix design is a procedure of selecting the suitable ingredients of concrete and their relative proportions with an objective to prepare concrete of certain minimum strength, desired workability and durability as economically (value engineered) as possible.

As we decide to go for a concrete mix design, collect the following data before hand as few design stipulation are freezed on the basis of these data.

Preliminary Data For Design Mix

Purely governed on the local conditions, were the concrete need to be applied

  • Exposure Condition: Exposure Conditions of the structure: The general environment to which the concrete will be exposed during its service life, is categorized into five class to severity, as per IS 456.
Environmental Exposure Conditions

The exposure condition limits the minimum cement content, maximum water – cement ratio and minimum grade of concrete.

As per exposure condition, you have the above data for working the first trial and arriving its mix proportion.

If you are getting desired result at a lower cement content, you need to put extra as mentioned by IS 456.

  • Minimum thickness of member: Size of aggregate should not be more than one-fourth of the minimum thickness of member, mostly 20 mm nominal size aggregate is suitable for most works. It is always suggested to go the maximum nominal size of aggregate to save on quantity of cement per unit of concrete.
  • Cement Grade : Cement type/grade locally available that can be made available throughout construction period
  • Workability : Placing condition of concrete governs its workability, low – slump of 25-75 mm (lightly reinforced sections in slab, beam, column) to high –  slump of 100-150 mm (slip form, pumped concrete)

Illustrative example of M30 grade concrete Exposed to Moderate conditions

(i) Stipulation for Proportioning Concrete Ingredients

(a) Characteristic compressive strength required in the field at 28 days grade designation — M 30

(b) Type of Cement : OPC 53 Grade confirming to IS 12269

(b) Maximum Nominal size of aggregate — 20 mm

(c) Shape of CA — Angular

(d) Workabiltiy required at site — 100 mm (slump)

(e) Type of exposure the structure will be subjected to (as defined in IS: 456) — Moderate

(h) Method of concrete placing: pump able concrete

(ii) Test Data of Material

The following materials are to be tested in the laboratory and results are to be ascertained for the design mix

(a) Cement Used : OPC 53 Grade Confirming to IS 12269

(b) Specific Gravity of Cement : 3.15

(c) Chemical admixture : Super plasticizer confirming to IS 9103

(d) Specific gravity

Specific gravity of Fine Aggregate (sand) : 2.70

Specific gravity of Coarse Aggregate : 2.80

(e) Water Absorption

Coarse Aggregate : 0.4%

Fine Aggregate : 1.0%

(f) Free (surface) moisture

Coarse Aggregate : Nil

Fine Aggregate : Nil

Aggregate are assumed to be in saturated surface dry condition usually while preparing design mix.

(g) Seive Analysis

Fine aggregates : Confirming to Zone I of Table 4 IS – 383

Step by Step Procedure for Concrete Mix design of M30 Grade Concrete

Step-1 : Determining the Target Strength for Mix Proportioning

F’ck = fck + 1.65 x S

Where,

F’ck = Target average compressive strength at 28 days

Fck = Characteristic compressive strength at 28 days

S = Assumed standard deviation in N/mm2 = 5 (as per table -1 of IS 10262- 2009)

= 30 + 1.65 x 5.0 = 38.25 N/mm2

Note : Under control conditions if Target average compressive strength is achieved then at field the probability of getting compressive strength of 30 MPa is very high

Assumed Standard Deviation of Various Concrete Grades

Step-2 : Selection of Water Cement ratio

From Table 5 of IS 456, Maximum water-cement ratio = 0.50

Note : Do not start with w/c ratio above 0.50,even though the other desired results like Strength, workability could be achieved.

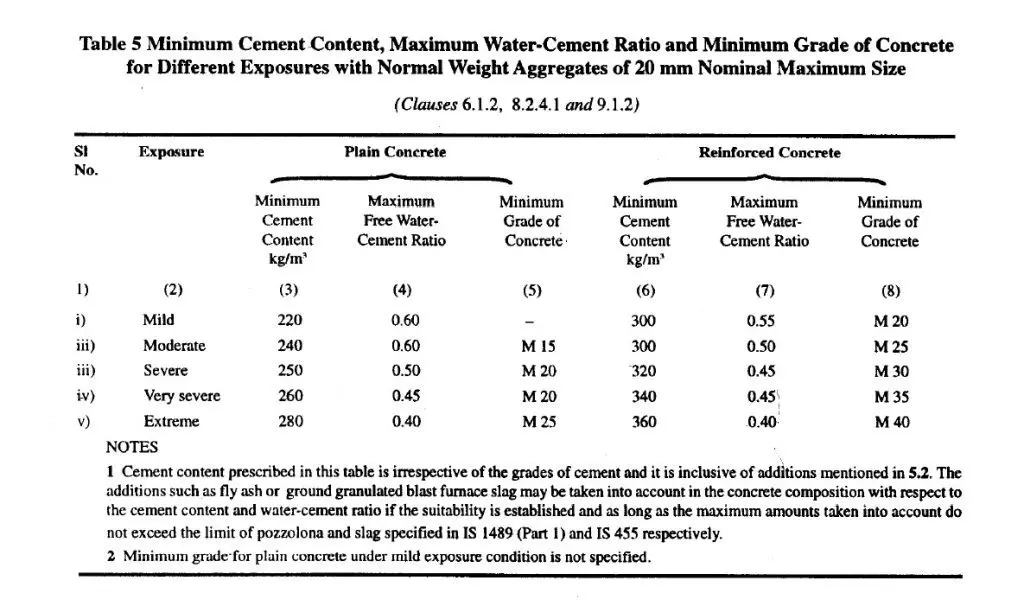

Minimum cement content and water cement ratios based on exposure conditions

Step-3: Selection of Water Content

Maximum water content for 20 mm aggregate = 186 Kg (for 25 to 50 slump)

maximum water conent per cubic meter for aggregate

We are targeting a slump of 100mm, we need to increase water content by 3% for every 25mm above 50 mm i.e. increase 6% for 100mm slump

i.e. Estimated water content for 100 Slump = 186+(6/100) X 186 = 197 litre

Water content = 197 liters

Step-4: calculation of Cement Content

Water-Cement Ratio = 0.50

Water content from Step – 3 i.e. 197 liters

Cement Content = Water content / “w-c ratio” = (197/0.50) = 394 kgs

From Table 5 of IS 456,

Minimum cement Content for moderate exposure condition = 300 kg/m3

394 kg/m3 > 300 kg/m3, hence, OK.

As per clause 8.2.4.2 of IS: 456

Maximum cement content = 450 kg/m3, hence ok too

Step-5: Proportion of Volume of Coarse Aggregate and Fine aggregate Content

From Table 3 of IS 10262- 2009, Volume of coarse aggregate corresponding to 20 mm size and fine aggregate (Zone I) = 0.60

Table-3 Volume of Coarse Aggregate

Note 1: In the present case water-cement ratio is 0.5.So there will be no change in coarse agreegate volume i.e. 0.60 .

Note 2: Incase the coarse aggregate is not angular one, then also volume of coarse aggregate may be required to be increased suitably based on experience.

Step-6: Estimation of Concrete Mix calculations

The mix calculations per unit volume of concrete shall be as follows:

  1. Volume of concrete = 1 m3
  2. Volume of cement = (Mass of cement / Specific gravity of cement) x (1/100) = (39/3.15) x (1/1000) = 0.125 m3
  3. Volume of water = (Mass of water / Specific gravity of water) x (1/1000) = (197/1) x (1/1000) = 0.197 m3
  4. Total Volume of Aggregates = 1- (b+c) =1- (0.125+0.197) = 0.678 m3
  5. Mass of coarse aggregates = d X Volume of Coarse Aggregate X Specific Gravity of Coarse Aggregate X 1000 = 0.678 X 0.60 X 2.80 X 1000 = 1139 kgs/m3
  6. Mass of fine aggregates = d X Volume of Fine Aggregate X Specific Gravity of Coarse Aggregate X 1000 = 0.678 X 0.40 X 2.70 X 1000 = 732 kgs/m3

Step-7: Concrete Mix Proportions for Trial Mix

Mix Proportions for trial Mix-1:

Cement = 394 kg/m3

Water = 197 kg/m3

Fine aggregates = 732 kg/m3

Coarse aggregate = 1139 kg/m3

Water-cement ratio = 0.50

Note-1: Aggregates should be used in saturated surface dry condition. If otherwise, when computing the requirement of water, allowance shall be made for the free (surface) moisture contributed by coarse aggregate and fine aggregate. On the other hand, if the aggregates are already dry , the amount of water mixed should be increased by an amount equal to the moisture likely to be absorbed by the aggregates. Necessary adjustments are also required to be made in the mass of the aggregates. The surface water and percenetage water abosorption shall be determined according to IS 2386.

Correction in water content due to absorption or moist aggregates

The slump shall be measured and the water content and shall be adjusted for achieving the required slump based on trial, if required. The mix proportions shall be reworked for the actual water content and checked for durability requirements.

Two more trials having variation of +/- 10% of water cement ratio  shall be carried out and a graph between three water-cement ratios and their corresponding strength shall be plotted to work out the mix proportions for the given target strength for field trials. However, durability requirement shall be met.

Mix Proportions for trial Mix-2

If achieved workability is more than targeted say 125mm. Reduce water content by 3% (for every 25 mm increase)

Water Content for Trial 2

Water content = 197 – (3/197)*100 = 191 liters

Calculation of Cement Content for Trial 2

Water-Cement Ratio                         = 0.50

Water content for Trial 2 = 191 liters

Cement Content = Water content / “w-c ratio” = (191/0.50) = 382 kgs

From Table 5 of IS 456,

Minimum cement Content for moderate exposure condition = 300 kg/m3

394 kg/m3 > 300 kg/m3, hence,  OK.

As per clause 8.2.4.2 of IS: 456

Maximum cement content = 450 kg/m3, hence ok too.

Proportion of Volume of Coarse Aggregate and Fine aggregate Content

If the mix is cohesive and slump was true ,we can infer that there would be no change in Volume of coarse aggregate = 0.60

Estimation of Concrete Mix Calculations

The mix calculations per unit volume of concrete shall be as follows:

  1. Volume of concrete = 1 m3
  2. Volume of cement = (Mass of cement / Specific gravity of cement) x (1/100) = (382/3.15) x (1/1000) = 0.121 m3
  3. Volume of water = (Mass of water / Specific gravity of water) x (1/1000) = (191/1) x (1/1000) = 0.191 m3
  4. Total Volume of Aggregates = 1- (b+c) =1- (0.121+0.191) = 0.688 m3
  5. Mass of coarse aggregates = d X Volume of Coarse Aggregate X Specific Gravity of Coarse Aggregate X 1000 = 0.688 X 0.60 X 2.80 X 1000 = 1155 kgs/m3
  6. Mass of fine aggregates = d X Volume of Fine Aggregate X Specific Gravity of Coarse Aggregate X 1000 = 0.688 X 0.40 X 2.70 X 1000 = 743 kgs/m3

Final Concrete Mix proportions for Trial Number 2

Cement = 382 kg/m3

Water = 191 kg/m3

Fine aggregates = 743 kg/m3

Coarse aggregate = 1155 kg/m3

Water-cement ratio = 0.50

Mix Proportions for Trial Mix-3

Sand being of Zone – I i.e. coarser ,If achieved concrete appears to be under sanded ,coarse aggregate is prominent and the mix is non-cohesive (not able to form ball).

Increase sand proportion in increments of 3%, coarse aggregate proportion will reduce by 3%.

Water Content for Trial 3

Water content = 197 liters (Trial -1)

Calculation of Cement Content for Tril 2

Water-Cement Ratio                         = 0.50

Water content for Trial 3 = 197 liters

Cement Content = Water content / “w-c ratio” = (197/0.50) = 394 kgs

From Table 5 of IS 456,

Minimum cement Content for moderate exposure condition = 300 kg/m3

394 kg/m3 > 300 kg/m3, hence, OK.

As per clause 8.2.4.2 of IS: 456

Maximum cement content = 450 kg/m3, hence ok too.

Proportion of Volume of Coarse Aggregate and Fine aggregate Content

The mix is non-cohesive (under sanded), we need to Increase sand proportion in increments of 3% and coarse aggregate proportion to be reduced by 3%.

Volume of coarse aggregate = 60 – 3% = 57%

Estimation of Concrete Mix Calculations

The mix calculations per unit volume of concrete shall be as follows:

  1. Volume of concrete = 1 m3
  2. Volume of cement = (Mass of cement / Specific gravity of cement) x (1/100) = (394/3.15) x (1/1000) = 0.125 m3
  3. Volume of water = (Mass of water / Specific gravity of water) x (1/1000) = (197/1) x (1/1000) = 0.197 m3
  4. Total Volume of Aggregates = 1- (b+c) =1- (0.125+0.197) = 0.678 m3
  5. Mass of coarse aggregates = d X Volume of Coarse Aggregate X Specific Gravity of Coarse Aggregate X 1000 = 0.678 X 0.57 X 2.80 X 1000 = 1082 kgs/m3
  6. Mass of fine aggregates = d X Volume of Fine Aggregate X Specific Gravity of Coarse Aggregate X 1000 = 0.678 X 0.43 X 2.70 X 1000 = 787 kgs/m3

Final Concrete Mix proportions for Trial Number 3

Cement = 394 kg/m3

Water = 197 kg/m3

Fine aggregates = 787 kg/m3

Coarse aggregate = 1082 kg/m3

Water-cement ratio = 0.50
