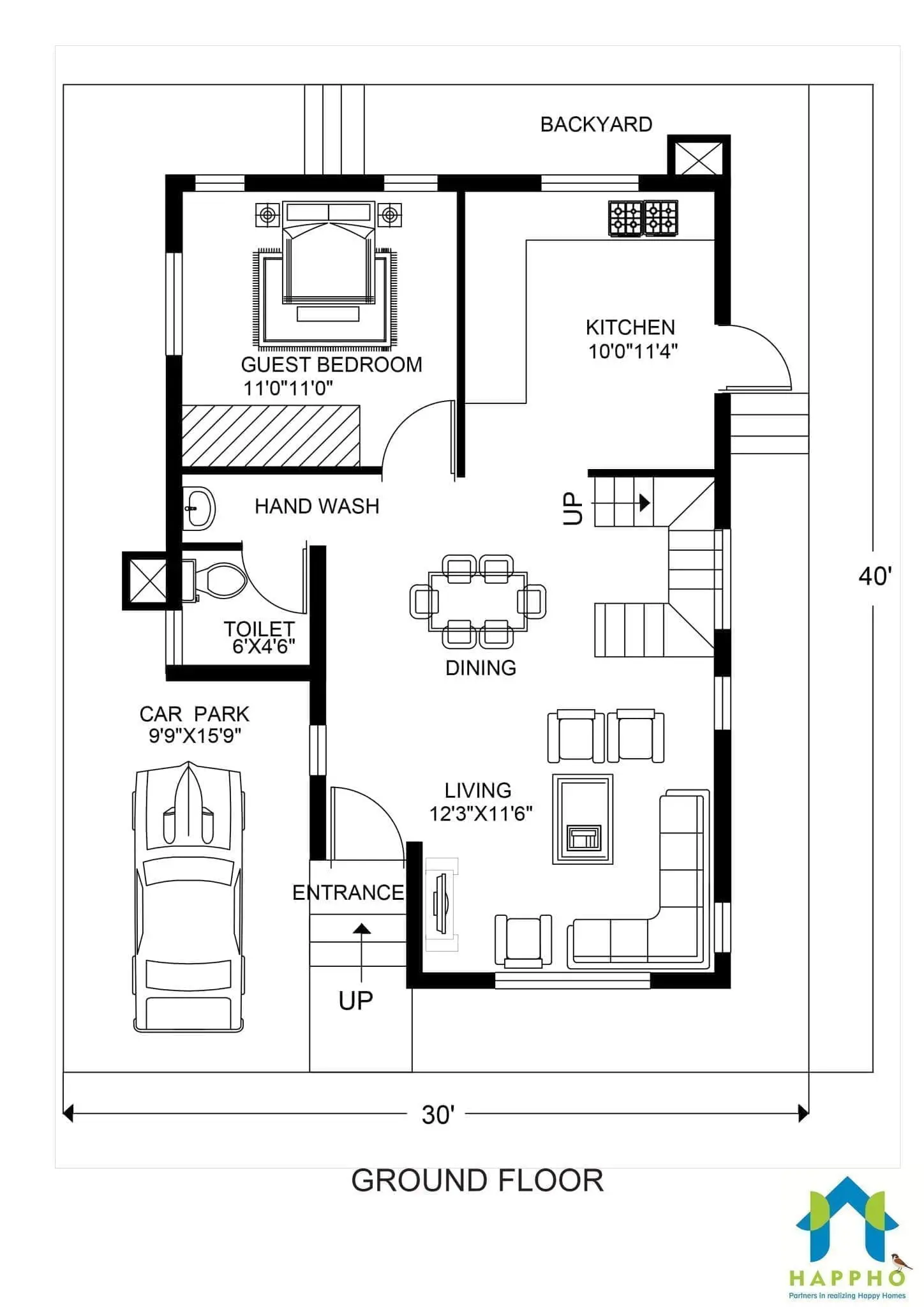

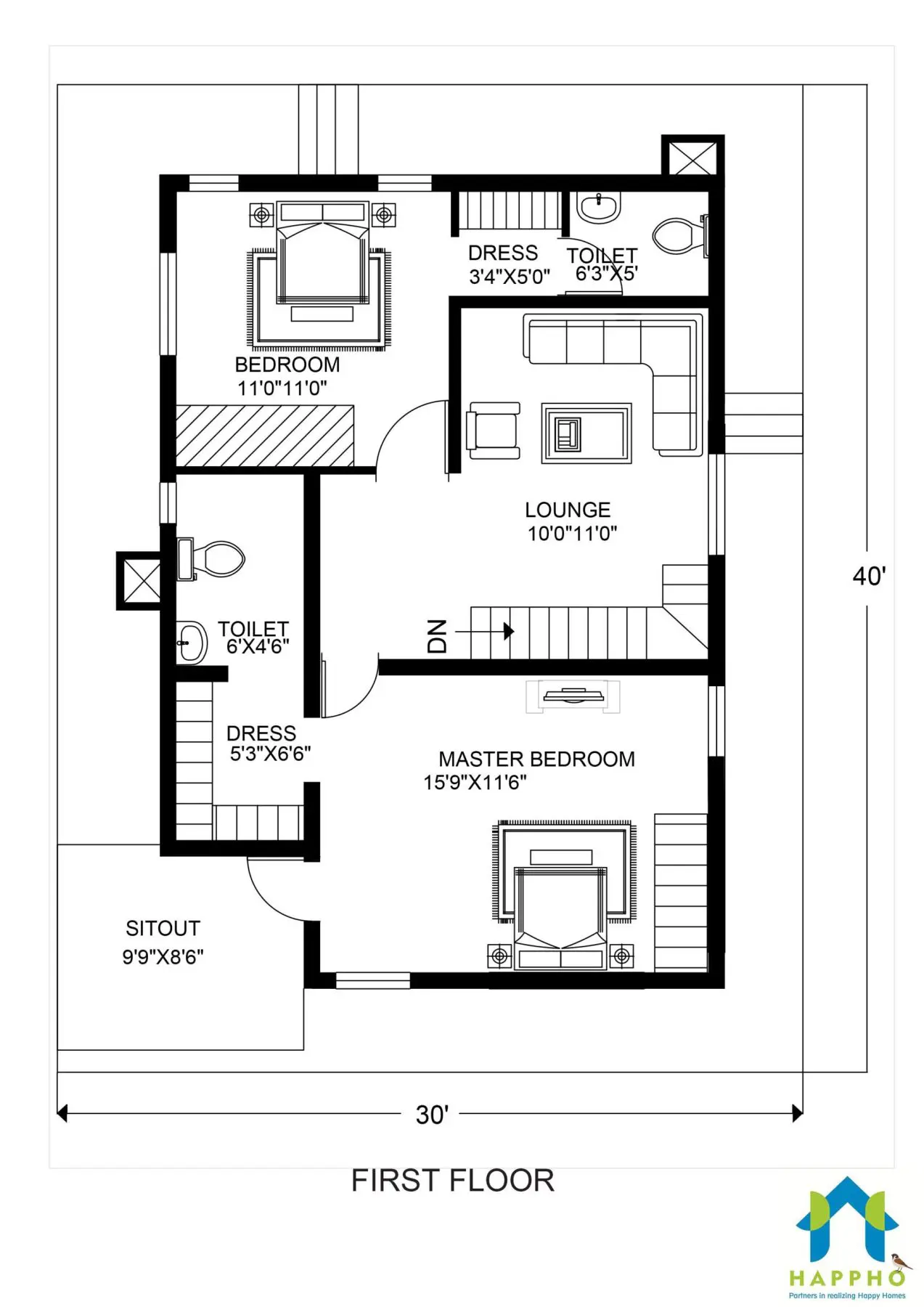

30 X 40 Duplex Floor Plan || 3-BHK (1200 Sq.ft) Plan-028

  • Plot Size: 1200
  • Construction Area: 2400
  • Dimensions: 30 X 40
  • Floors: Duplex
  • Bedrooms: 3

About Layout

The floor plan is for a spacious 1 BHK bungalow with family room in a plot of 30 feet X 40 feet. The ground floor has a parking space and Internal staircase which can be used for future internal upper extension.

Vastu Compliance

This floor plan is an ideal plan if you have a West Facing property. The kitchen will be ideally located in South-East corner of the house (which is the Agni corner). Bedroom will be in the North-East Corner of the Building which is an ideal position as per vaastu.


Living Room 2Dining Room 1
Bedroom 3Kitchen 1
Bath 1Parking 1
Doors 4Windows 4
